### Per Unit System Example for the Electrical PE Exam

Using the Per Unit system and taking into account the transformer percent impedances, solve for the current in each part of the three-phase system shown below. Assume both transformers are either delta delta or wye wye connected and that there is no phase shift between primary and secondary current and voltage.

### Solution:

The usefulness of the per unit system is in converting all system impedances to per unit impedances and re-drawing the circuit without having to worry about the different voltage levels from each transformer.

In this example, there are two transformers that divide the system into three sections of different voltages. The first step is to divide the system into different sections based on voltage levels. I do this by typically drawing a straight line below each transformer:

The first step is to divide the system into different sections based on voltage levels.

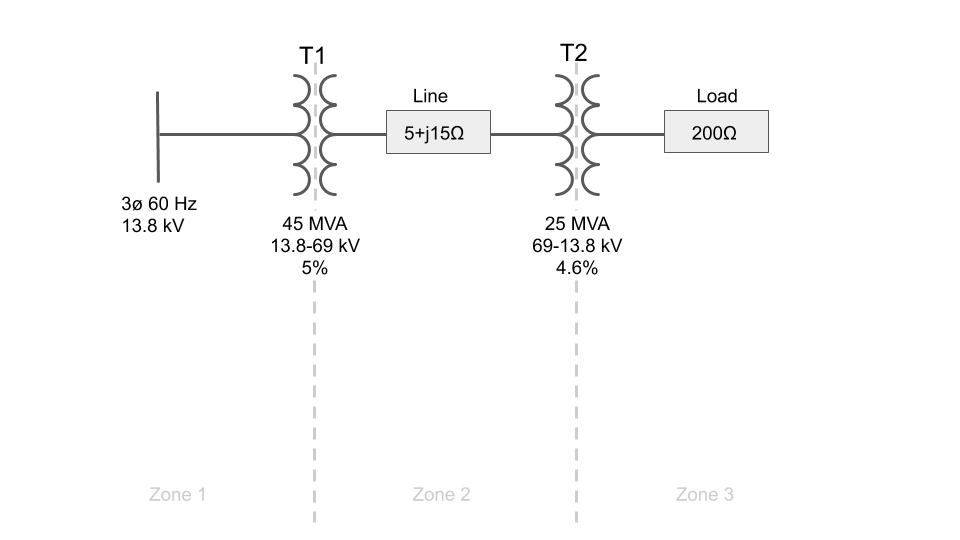

I typically do this by drawing a straight line directly below each transformer:

The next step is to choose the base values for power and voltage.

The base power will be the same in for each section, but each section will have a different base voltage.

The problem might tell you to use specific values for base power and voltage. If it does, use them accordingly as the answer choices will most likely still be in per units and using a different base will change the resulting per unit system values.

If the problem does not assign the base values for you, then it is advantageous to pick one of the existing MVA values in the system such as the apparent power rating of one of the machines.

Similar for voltage, it is advantageous to pick one transformer and use either the primary or secondary voltage as the base voltage in a particular section, and then use the remaining transformer ratios to step up or down the voltage base for each neighboring section accordingly. Why this is advantageous will become clear when we run the math.

If all transformer ratio’s match, then the secondary voltages of all upstream transformers are equal to the primary voltage all downstream transformers and vice versa, then your voltage base in each section will be equal to the primary and secondary voltages of each transformer. That is the case for this example.

For base power, I’ve arbitrary picked T1’s MVA rating for the system and the voltage ratios of the transformers for the base voltage in each section:

Now that we have the assigned base values for power and voltage, we’ll need to calculate the base impedance for each section so that we can use it to calculate the per unit impedances later on.

The formula for base impedance is:

We can solve for impedance using voltage and power, and if we use the base voltage and base power in each section, then the resulting impedance will be the base impedance for each section as shown below:

Now that we have calculated the base impedance for each section, we can start calculating the per unit impedances of each system element using the following formula:

We will start by calculating the per unit line impedance and per unit load impedance first before we tackle the transformers.

The line per unit impedance and load per unit impedance are calculated as shown below:

Now that we know the per unit line and load impedances, let’s drawn them on the per unit circuit diagram:

In order to complete the above diagram, we’ll need to calculate the per unit impedances of both transformers T1 and T2.

The catch here is that we don’t know either of the transformer impedances in ohms, we are instead given their percent impedances.

When you are given the percent impedance of a machine such as a transformer, generator, or motor, the percent impedance is given in the base ratings of the machine itself.

This means that in order to calculate the percent impedances of the transformers, we actually need to perform a per unit base change using the following formula:

In this case, the old base will be the ratings of each transformer, and the new base will be the new bases we have chosen.

Since we are working with impedances, we will need to plug in the impedance formula that uses the square of the voltage divided by power:

In the above formula, SB and VB will be the chosen bases of our system and section, and S and V will be the transformer voltage and power rating.

Transformers have one power rating, so choosing that is easy. However, they have two voltages, a primary and secondary.

If we use the transformer’s primary voltage for V we will need to use the base voltage on the primary side of the transformer for VB in the formula above.

If we use the transformer’s secondary voltage for V then we will need to use the base voltage on the secondary side of the transformer for VB instead.

This will be more clear when run the math below.

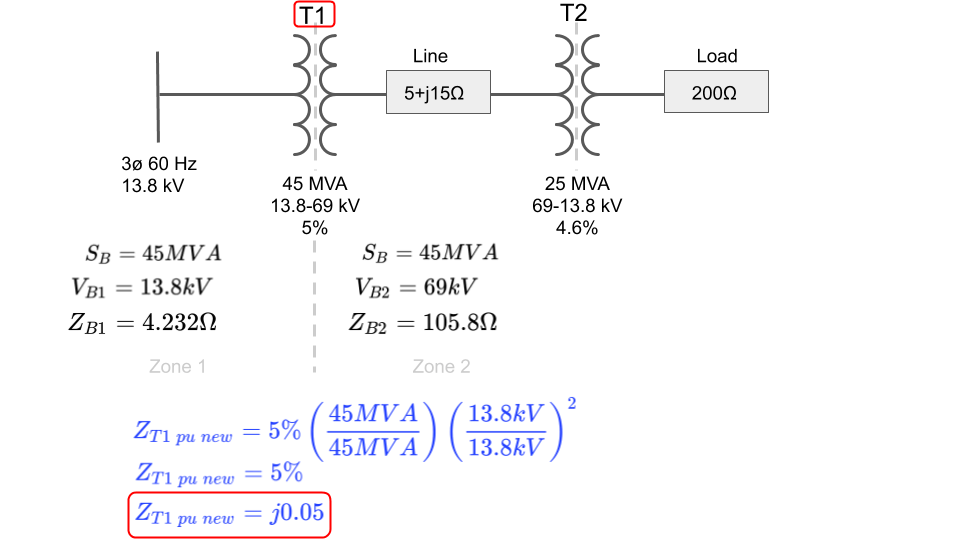

Let’s base change each transformer’s percent impedance one at a time starting with transformer T1 using the primary voltage rating as V and the voltage base on the primary side of the transformer for VB:

Notice that since we originally chose 45MVA as the base power for the system, both power terms are equal and cancel. This will not be true for T2.

Also, notice, that both voltage values are also equal and cancel since the base voltage in each section is equal to each transformer’s voltage ratio.

It is important to be aware that the voltage values in the above formula **will not cancel** when the actual voltage in a section is not equal to the transformer’s voltage ratios such as when a generator is connected that supplies a voltage slightly higher or slightly lower than the primary voltage ratio of the transformer it is connected to, or, when all transformer ratios do not match as mentioned in the first several paragraphs.

Notice that since our base power and base voltage for T1 equal the base values we were changing to, there is no actual change in the percent impedance. We started with 5% and ended with 5%.

Last bit of importance is to notice the imaginary “j” term placed in front of the final per unit impedance value for T1.

Transformers are made up of large inductive coils and their impedance is mostly reactive.

**The PE exam may not remind you of this and it will be up to you to not only recognize that this is actually a reactive impedance but to also add the imaginary j term to it.**

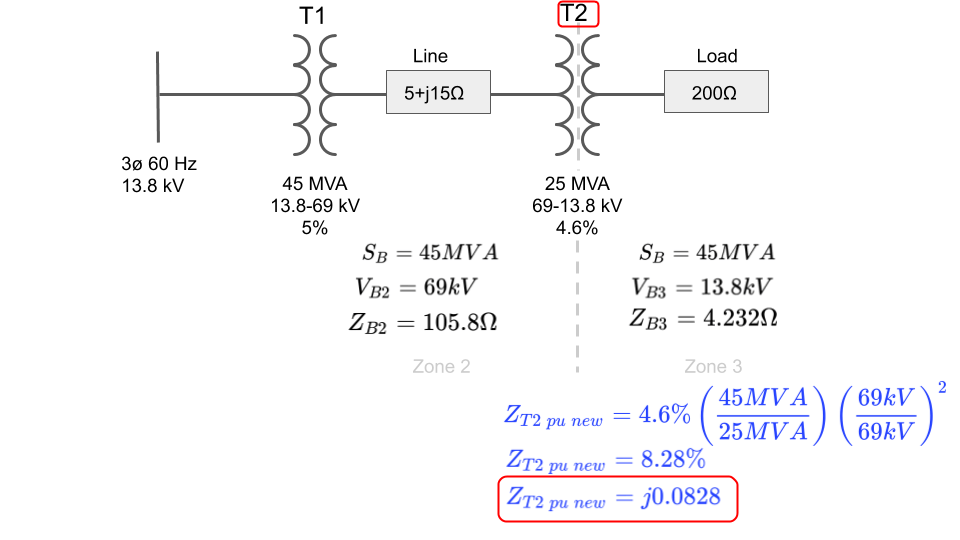

Let’s move on and calculate the per unit impedance for transformer T2:

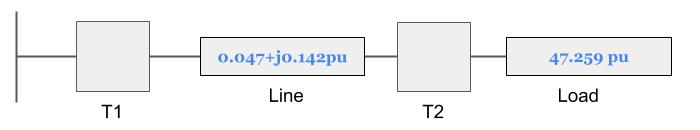

Now that we have both per unit impedances let’s fill in the remaining values in our per unit impedance diagram. again, notice both

Again, notice that both transformer per unit impedances are reactive terms and we had to add the “j” multiplier:

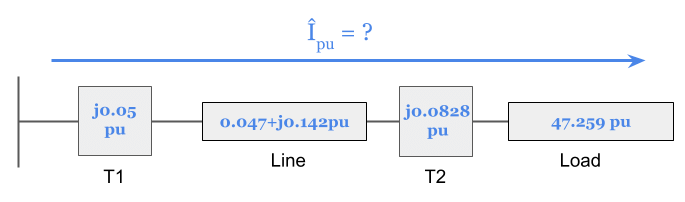

Now that we have all impedances converted to per unit values of the same base, it’s time to calculate the per unit current using Ohm’s law:

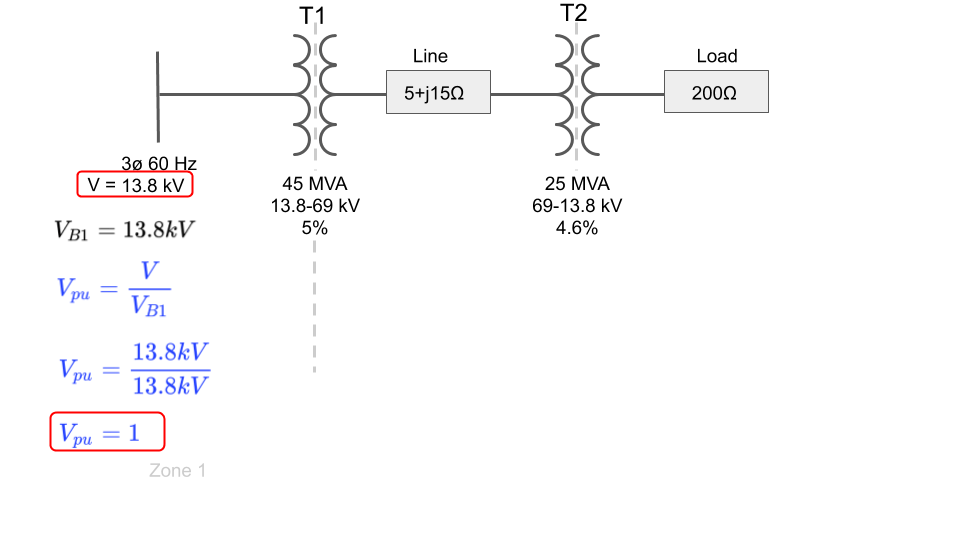

However, in order to calculate the per unit impedance, we will need to calculate the per unit voltage.

Luckily for us, the voltage on our input bus is equal to the base voltage selected in that zone which simplifies the math since both terms cancel:

That’s right, the per unit voltage is equal to 1.

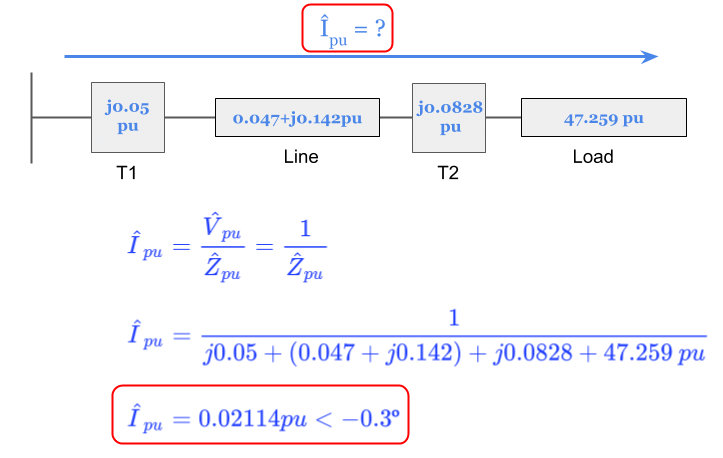

This greatly simplifies solving for the per unit current which will now equal the inverse of the total series per unit impedance of the system:

The per unit current will be the same value for each voltage section.

Now that we know the per unit current, we can finally calculate the actual current in each voltage section by multiplying by the per unit current by each base current:

However, this requires us to know what the base current in each voltage section is equal to.

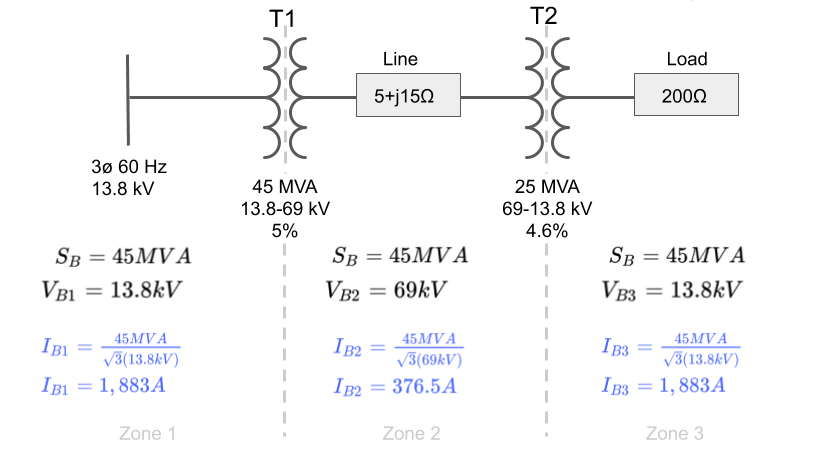

We can calculate it using the chosen base power and the chosen base voltage in each section as shown below.

Notice the √3 multiplier since it is a three phase system:

Now that we have each of the base current values we can complete the problem and solve for the actual current in each section in amps:

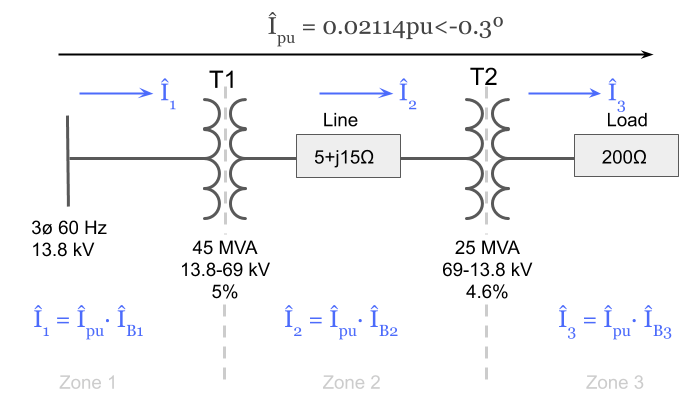

We can now fill in the current in amps for each section to the original system diagram that we started with:

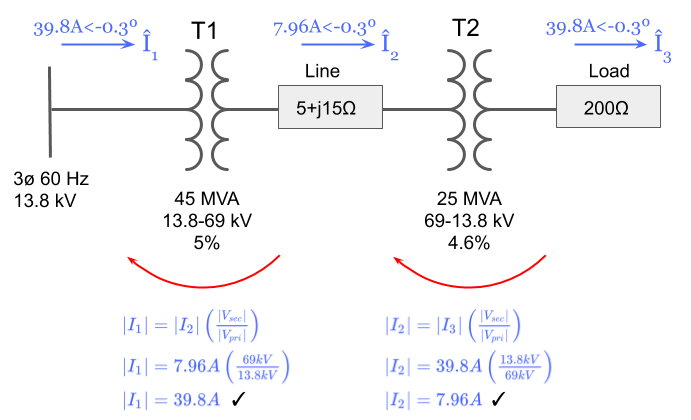

For a quick check of our work, we can use the transformer voltage ratios to verify our currents are equal in each zone depending on voltage level.

If we did our work correctly we should get almost the exact same answer for each current by starting with one and using the transformer ratios to solve for the rest

Let’s start with current I3 and work our way back to I2 and I1:

Looks good!

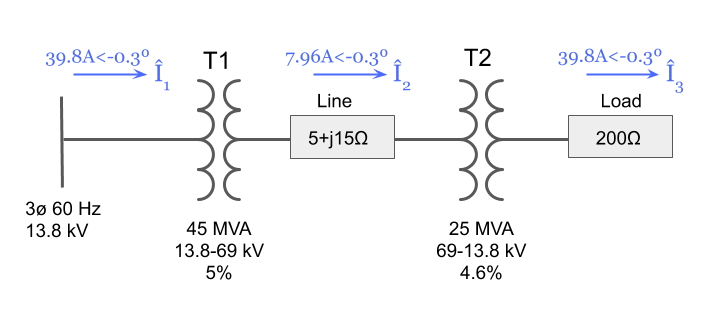

Here is our final answer solving for the individual currents in amps of the original system using the per unit method:
